ANTE Deep Groove Ball Bearing Suffixes Full Decoder & Selection Guide (2026)

Shandong Ante Bearing Technology Co., LTD 2025-Jul-07

Deep groove ball bearings are the most widely used bearing type in global industrial equipment household appliances automotive systems and power tools. Two bearings with identical dimensions can perform very differently under real working conditions because of the suffix codes added to the model number. These short codes define sealing structure internal clearance cage material precision grade and special performance features that directly determine service life noise level heat generation and suitability for harsh environments. Choosing the wrong suffix can lead to premature failure frequent maintenance increased operating costs and unexpected downtime for production lines.

This complete guide from ANTE Bearing explains all common suffixes for deep groove ball bearings in clear practical terms. It helps engineers purchasers maintenance teams and equipment designers quickly understand decode and select the correct bearing configuration for any application. The content covers the most popular international standard suffixes used across the industry fully aligned with ANTE Bearing’s 6000 6200 and 6300 series product lineup to support better Google search exposure brand awareness and targeted advertising reach for deep groove ball bearing related keywords.

1. Quick Selection Table of ANTE Deep Groove Ball Bearing Suffixes

Suffix Combination	Core Structure Feature	Key Performance Benefit	Typical Application Scene
Z / 2Z	Single or double-sided steel shield	Dust protection, high speed suitability	General motors, fans, clean working conditions
RS / 2RS	Single or double-sided rubber contact seal	Excellent dust and oil resistance, long lubrication life	Wet and dusty environments, food machinery, textile equipment
C3	Internal radial clearance larger than standard	Compensates thermal expansion, reduces heat jamming	High speed motors, heating equipment, fans
C4	Internal radial clearance larger than C3	Adapts to high temperature and heavy vibration environments	Large pumps, compressors, heavy gearboxes
J	Pressed steel cage	Light weight, low cost, stable general performance	Standard industrial equipment, household appliances
M	Machined brass cage	High rigidity, low noise, stable operation	Precision equipment, quiet motors, blowers
TN9	Glass fiber reinforced nylon cage	High speed resistance, corrosion resistance	Power tools, high RPM motors, electric tools
N / NR	Outer ring with snap ring groove or with snap ring	Convenient axial positioning, fast installation	Gearboxes, automotive components, home appliances
P6 / P5	Higher precision grade	Low vibration, low noise, high running accuracy	Office equipment, precision instruments, servomotors

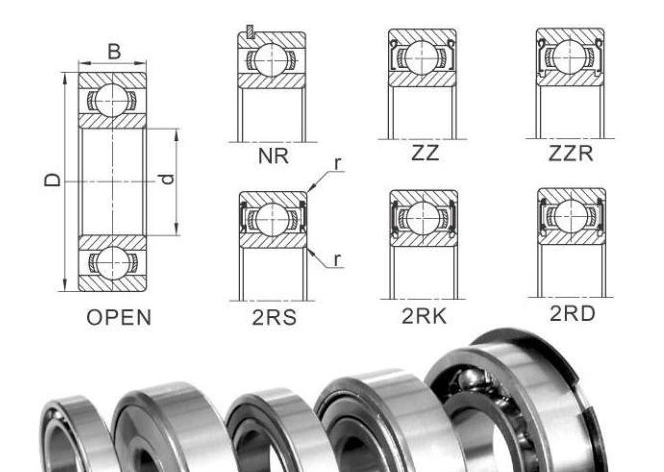

2. Sealing and Protection Suffixes of ANTE Deep Groove Ball Bearings

Sealing performance is one of the most critical factors affecting bearing service life especially in harsh environments with dust moisture oil contamination or water splashing. ANTE Bearing provides multiple sealing structures to meet different protection needs.

・Steel shield suffixes Z and 2Z ：use thin metal stamping components to form a non contact protective structure. This design maintains high speed operation while blocking coarse dust and impurities. It is suitable for relatively clean working environments such as general fans motors and small industrial machinery. Single sided Z shield provides basic unilateral protection while double sided 2Z shield offers all round dust resistance for more reliable daily operation.

・Rubber seal suffixes RS and 2RS ：use elastic nitrile rubber material to form a contact sealing structure. This type of seal can effectively lock internal lubricant prevent external dust moisture and oil from entering the bearing cavity and extend maintenance free cycle. It is widely used in food processing machinery textile machines agricultural equipment construction machinery and other harsh working conditions where contamination is serious. Double sealed 2RS structure is the most popular choice in the market for its outstanding comprehensive protection performance.

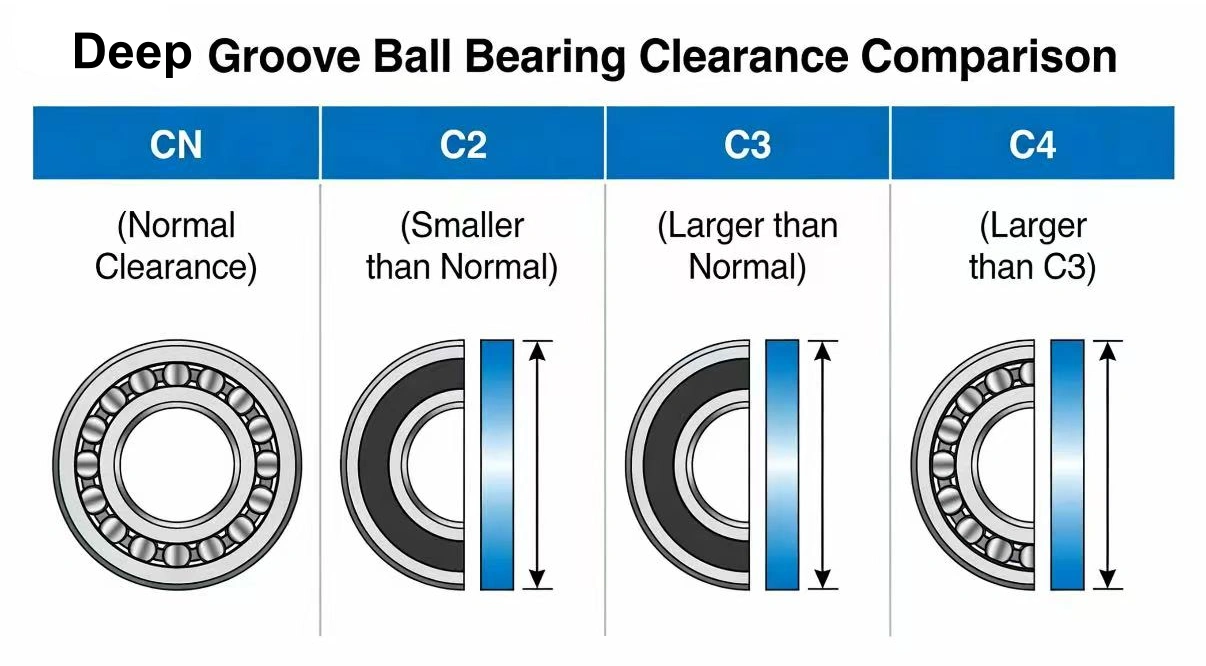

3. Internal Clearance Suffixes of ANTE Deep Groove Ball Bearings

Internal radial clearance is the movable gap between the inner ring outer ring and rolling elements. It directly affects whether the bearing will jam due to heat expansion during high speed or high temperature operation. Correct clearance selection ensures stable rotation low noise and long service life.

・CN -represents standard internal clearance which is the default configuration for most general purpose bearings. It is suitable for normal temperature conventional speed and standard load applications without special requirements.

・C2 -represents smaller internal clearance than standard. It is used in precision equipment with very high rotation accuracy requirements low temperature environments and situations where minimal radial movement is allowed.

・C3 -represents larger internal clearance than standard. It is the most commonly used upgraded configuration in industrial motors fans pumps and high speed equipment. It can fully compensate for thermal expansion caused by friction and heating during high speed operation avoiding locking and abnormal noise.

・C4 -represents larger internal clearance than C3. It is designed for high temperature heavy load and strong vibration working conditions such as large industrial pumps compressors crushers and heavy transmission devices to ensure stable performance under extreme conditions.

4. Cage Material Suffixes of ANTE Deep Groove Ball Bearings

The cage is used to evenly separate rolling balls reduce friction and collision and maintain stable operation of the bearing. Different cage materials directly affect bearing speed noise rigidity and service life. ANTE Bearing uses three mainstream cage structures to match different application scenarios.

・Pressed steel cage marked with suffix J is the most common standard configuration. It has the advantages of light weight good heat dissipation low cost and stable performance. It is suitable for most general industrial equipment household appliances fans and small motors with balanced cost and performance.

・Machined brass cage marked with suffix M has high strength good rigidity and low vibration characteristics. It can maintain stable guidance under high speed and heavy load conditions reduce noise and extend service life. It is widely used in precision motors high grade blowers quiet equipment and industrial devices requiring low noise operation.

・Glass fiber reinforced nylon cage marked with suffix TN9 has the characteristics of high speed resistance low friction light weight and chemical corrosion resistance. It is especially suitable for high speed rotating equipment such as power tools electric tools high RPM motors and garden machinery. It can reduce energy consumption and improve equipment operation efficiency.

5. Installation and Structural Suffixes of ANTE Deep Groove Ball Bearings

These suffixes are designed to simplify installation improve positioning reliability and meet special structural needs of equipment. They help users reduce installation difficulty improve assembly efficiency and enhance overall stability of the equipment.

・Suffix N means there is a snap ring groove on the outer ring of the bearing which is used to install a snap ring for axial positioning. It simplifies the internal structure of the equipment housing reduces processing procedures and is convenient for rapid assembly.

・Suffix NR means the bearing is equipped with a snap ring groove and a snap ring as a complete set. Users can directly install it without additional procurement of accessories which is convenient and efficient. It is widely used in automotive accessories household appliances gearboxes and small power tools.

・Suffix V represents full complement ball structure without cage. This design can accommodate more rolling balls increase radial load capacity and is suitable for heavy load low speed occasions such as conveyor wheels manual machinery and heavy load transmission devices.

6. Precision and Special Performance Suffixes of ANTE Deep Groove Ball Bearings

For high precision equipment special temperature environments and customized working conditions ANTE Bearing provides a variety of high-end performance suffix configurations to meet demanding industrial needs.

Precision grade suffixes P6 and P5 represent higher precision levels than standard P0 grade. They have stricter tolerance control lower vibration and noise and more stable rotation accuracy.

・P6 grade is suitable for household appliances office equipment and small precision motors while P5 grade is used in high precision machine tools servomotors measuring instruments and professional equipment with extremely high requirements for operation accuracy.

・High temperature grease suffix WT means the bearing is pre filled with high temperature resistant special grease which can stably operate in a wide temperature range from minus 40 degrees Celsius to plus 180 degrees Celsius. It is suitable for high temperature ovens drying equipment heating motors and other thermal equipment.

・Stainless steel corrosion resistant suffix VA201 uses stainless steel material for inner ring outer ring and rolling elements. It has excellent rust and corrosion resistance and is suitable for food processing machinery medical equipment marine hardware and humid and corrosive environments.

7. ANTE Bearing Model Naming and Configuration Interpretation

Taking ANTE 6205 2RS C3 TN9 P6 as an example this model represents a fully configured high performance deep groove ball bearing. 6205 is the basic model representing the standard size series with inner diameter 25mm outer diameter 52mm and width 15mm：

・2RS means double sided rubber contact seal for all round protection.

・ C3 means larger internal clearance to adapt to high speed and heating conditions.

・TN9 means glass fiber reinforced nylon cage for high speed operation.

・P6 means high precision grade with low noise and low vibration.

This configuration is widely used in high speed motors fans electric tools and precision transmission equipment.

Through complete suffix interpretation users can accurately select the most suitable bearing without relying on experience or guesswork avoiding performance mismatch and premature failure.

Application Matching Guide of ANTE Deep Groove Ball Bearings

・For motors and fans the recommended configuration is 6200 6300 series with 2Z C3 J structure which has the advantages of high speed low heat long service life and stable operation.

・For food and beverage machinery the recommended configuration is 2RS sealed structure with stainless steel and food grade grease which is hygienic waterproof and pollution proof to meet industry safety standards.

・For automotive and power tools the recommended configuration is NR TN9 C3 which is easy to install high speed resistant shock resistant and durable to adapt to complex working conditions.

・For high precision equipment the recommended configuration is P5 M brass cage C3 clearance which achieves ultra low noise stable rotation and high accuracy to meet strict equipment requirements.

・For heavy dust and mining environment the recommended configuration is 2RS full complement V structure with super strong sealing performance to extend service life in harsh conditions.

Why Choose ANTE Deep Groove Ball Bearings

Q : How many the MOQ of your company?

A: Our company MOQ is 1pcs.

Q : Is it your company is factory or Trade Company?

A: We have our own factory; And we export bearing for twenty years to all over the world.

Q : Could you accept OEM and customize?

A: Yes, we can customize for you according to sample or drawing. we can customize housings in different styles and sizes in different brands.

Q : Could you supply sample for free?

A: Yes, we can supply sample for free.

Q : Could you tell me the delivery time of your goods?

A: If stock,in 7days or base on your order quantity.

Q : What time the guarantee of your bearing quality guarantee period?

A: 6 months ,Customer need supply photos and send bearing back.
