Linear motion bearings are characterized by smooth movement, low friction, high rigidity, and long service life. They are economical, eas...
Linear motion bearings are characterized by smooth movement, low friction, high rigidity, and long service life. They are economical, easy to maintain, and easy to replace. Electric linear guides, such as machine tool guides, X-Y tables, roller tables, and some dovetail guides, are driven by bearings via a drive mechanism. Not all linear guides are electric; non-electric dovetail guides, ball bearing guides, and roller guides provide low-friction linear motion for inertial or manual equipment.
All linear guides use bearings to achieve linear motion, whether ball bearings, dovetail bearings, or linear roller bearings. X-Y tables, linear platforms, machine tool guides, and other modern guides use linear motion bearings to achieve multi-axis movement along the X and Y axes.
| ITEM | d(mm) | D(mm) | B(mm) | Weight(kg) |
|---|---|---|---|---|
| LMF35UU | 35 | 52 | 70 | 0.65 |
Features
1. Cylindrical type (shaped like a cylinder, generally installed with a snap ring, used in applications with small installation dimensions)
2. Flange type (with a mounting flange at the end or middle, can be installed with screws; flanges are generally divided into round, square, and chamfered types)
3. Open type (shaped like a cylinder, with an axial slit on the surface, used in applications requiring clearance adjustment; divided into large and small opening types)
Detailed Images

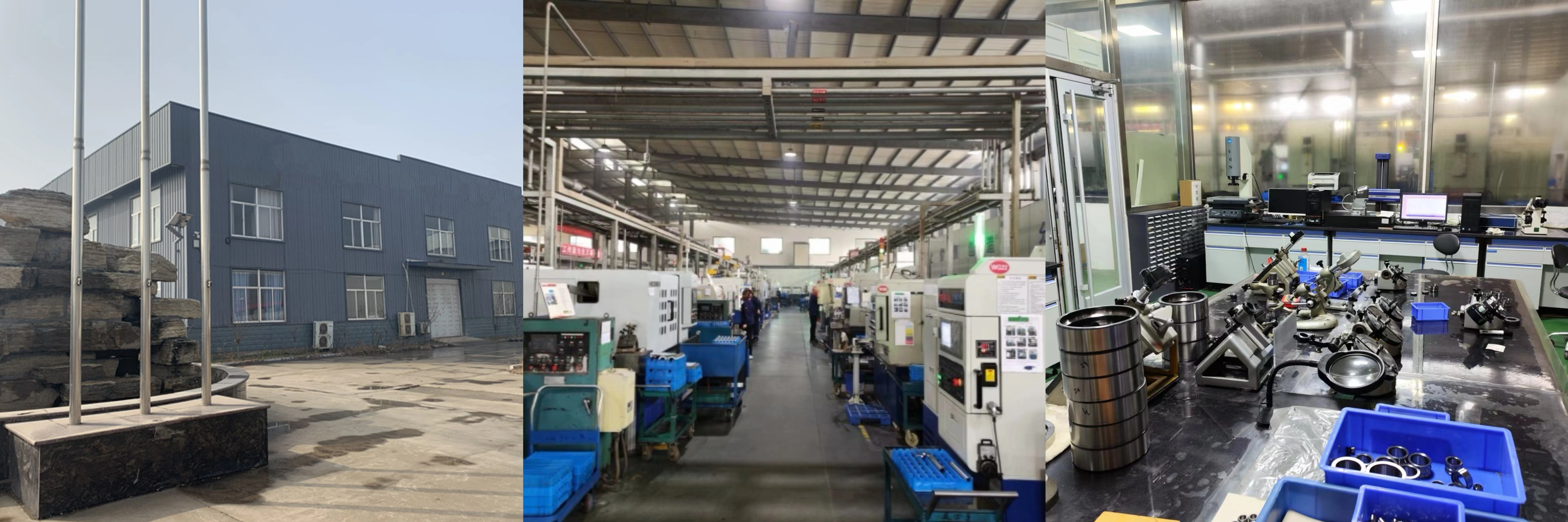

Company Information
Ante bearing technology co., LTD. Is located in jinan, shandong province. Committed to expanding the bearing overseas market. It mainly operates its own brand, SAT and SAY.And OEM business. At the same time business SKF, NSK, KOYO, NACHI, TIMKEN, FAG and other different brands of bearing products. We can provide customers with better quality, lower price and faster delivery time. To provide customers with different product quality requirements, to meet customer needs.
The company's main products are: deep groove ball bearings, tapered roller bearings, aligning roller bearings, automotive hub bearings, clutch bearings, aligning ball bearings and other types of products. And the customization of non-standard products. The company provides the high quality product and the high quality service for the global consumer, altogether creates resplendence with you.
Exhibition
Packaging & Shipping
Our Certificates
1. who are we?
We are based in Shandong, China, start from 2020,sell to South America(20.00%),North America(20.00%),South Asia(10.00%),Southern Europe(10.00%),Northern Europe(10.00%),Western Europe(10.00%),Africa(10.00%),Eastern Europe(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.what can you buy from us?
Bearing,Auto bearing,Deep groove ball bearing,Tapered roller bearing,Aligning roller bearing.
4. why should you buy from us not from other suppliers?
20 years of professional production level，High quality bearing products，12 years experience in export trade，Professional service and low prices.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash.
| Sealed type | d mm | D mm | L mm | ≈ KGS |
| LM 3 UU | 3 | 7 | 10 | 0.001 |
| LM 4 UU | 4 | 8 | 12 | 0.002 |
| LM 5 UU | 5 | 10 | 15 | 0.004 |
| LM 6 UU | 6 | 12 | 19 | 0.008 |
| LM 8 UU | 8 | 15 | 24 | 0.016 |
| LM 10 UU | 10 | 19 | 29 | 0.030 |
| LM 12 UU | 12 | 21 | 30 | 0.032 |
| LM 13 UU | 13 | 23 | 32 | 0.043 |
| LM 16 UU | 16 | 28 | 37 | 0.069 |
| LM 20 UU | 20 | 32 | 42 | 0.087 |
| LM 25 UU | 25 | 40 | 59 | 0.220 |
| LM 30 UU | 30 | 45 | 64 | 0.250 |
| LM 35 UU | 35 | 52 | 70 | 0.390 |
| LM 40 UU | 40 | 60 | 80 | 0.590 |
| LM 50 UU | 50 | 80 | 100 | 1.580 |
| LM 60 UU | 60 | 90 | 110 | 2.000 |
| LM 80 UU | 80 | 120 | 140 | 4.420 |
| LM 100 UU | 100 | 150 | 175 | 8.600 |
| Sealed type | d mm | D mm | L mm | ≈ KGS |
| LME 5 UU | 5 | 12 | 22 | 0.004 |
| LME 8 UU | 8 | 16 | 25 | 0.016 |
| LME 12 UU | 12 | 22 | 32 | 0.032 |
| LME 16 UU | 16 | 26 | 36 | 0.069 |
| LME 20 UU | 20 | 32 | 45 | 0.087 |
| LME 25 UU | 25 | 40 | 58 | 0.220 |
| LME 30 UU | 30 | 47 | 68 | 0.250 |
| LME 40 UU | 40 | 62 | 80 | 0.585 |
| LME 50 UU | 50 | 75 | 100 | 1.580 |
| LME 60 UU | 60 | 90 | 125 | 2.000 |
| LME 80 UU | 80 | 120 | 165 | 5.140 |
| Sealed type | d mm | D mm | L mm | ≈ KGS |
| LMF 6 UU | 6 | 12 | 19 | 0.037 |
| LMF 8 UU | 8 | 15 | 24 | 0.05 |
| LMF 10 UU | 10 | 19 | 29 | 0.072 |
| LMF 12 UU | 12 | 21 | 30 | 0.08 |
| LMF 13 UU | 13 | 23 | 32 | 0.094 |
| LMF 16 UU | 16 | 28 | 37 | 0.16 |
| LMF 20 UU | 20 | 32 | 42 | 0.18 |
| LMF 25 UU | 25 | 40 | 59 | 0.34 |
| LMF 30 UU | 30 | 45 | 64 | 0.68 |
| LMF 35 UU | 35 | 52 | 70 | 1.02 |
| LMF 40 UU | 40 | 60 | 80 | 1.48 |
| LMF 50 UU | 50 | 80 | 100 | 2.2 |
| LMF 60 UU | 60 | 90 | 110 | 2.96 |
| LMF 80 UU | 80 | 120 | 140 | 6.5 |
| Sealed type | d mm | D mm | L mm | ≈ KGS |
| LMK 6 UU | 6 | 12 | 19 | 0.03 |
| LMK 8 UU | 8 | 15 | 24 | 0.041 |
| LMK 10 UU | 10 | 19 | 29 | 0.045 |
| LMK 12 UU | 12 | 21 | 30 | 0.076 |
| LMK 13 UU | 13 | 23 | 32 | 0.088 |
| LMK 16 UU | 16 | 28 | 37 | 0.12 |
| LMK 20 UU | 20 | 32 | 42 | 0.18 |
| LMK 25 UU | 25 | 40 | 59 | 0.34 |
| LMK 30 UU | 30 | 45 | 64 | 0.47 |
| LMK 35 UU | 35 | 52 | 70 | 0.65 |
| LMK 40 UU | 40 | 60 | 80 | 1.06 |
| LMK 50 UU | 50 | 80 | 100 | 2.2 |
| LMK 60 UU | 60 | 90 | 110 | 3 |
| LMK 80 UU | 80 | 120 | 140 | 5.3 |
