Product Introduction

The 6306 bearing is a single row deep groove ball bearing. It is designed for applications requiring higher load capacity than the 6206 series. The 6306 bearing dimensions are: inner diameter 30 mm, outer diameter 72 mm, and width 19 mm. The 6306 bearing weight is approximately 0.35 kg.

The 6306 deep groove ball bearing is suitable for moderate to heavy radial loads and can accommodate axial loads in both directions. Compared to the 6206, the larger outer diameter provides higher load capacity at slightly lower maximum speeds.

The 6306 bearing is part of our extensive 6300 series deep groove ball bearings, designed for industrial applications requiring higher load ratings.

Common applications for 6306 bearing include:

• Industrial electric motors
• Heavy-duty gearboxes
• Centrifugal pumps and compressors
• Agricultural machinery
• Industrial fans and blowers

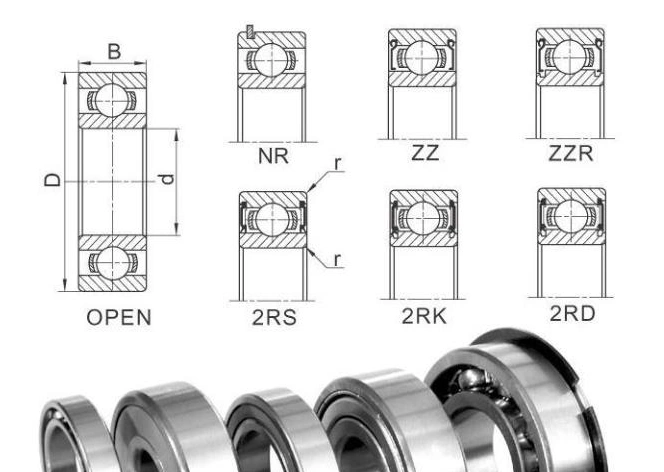

Available types of 6306 bearing:

6306 ZZ

- Double metal shield, suitable for dust protection

6306 2RS

- Double rubber seal, provides better sealing against moisture and contaminants

6306 Open

- No seal, suitable for high-speed applications or oil lubrication

6306 C3 bearing

         - Increased radial clearance for high-speed or high-temperature applications

  Technical Data: Dynamic load rating 27.0 kN, static load rating 15.2 kN, limiting speed 8,000 rpm (grease lubrication).

We are an ISO 9001 bearing manufacturer with our own factory. All 6306 bearings are inspected before shipment. Contact us for 6306 bearing price and stock availability.

Send us your 6206 bearing quantity for a factory-direct quote.

Features

*Surface treatment: galvanized or silver-plated for a very smooth surface
*Durable and easy to install
*Extremely convenient and practical
*Corrosion-resistant and oil-resistant
*Usable in mechanical shaft grooves
*A wide range of models to meet your diverse needs.

Company Information

Ante bearing technology co., LTD. Is located in jinan, shandong province. Committed to expanding the bearing overseas market. It mainly operates its own brand, SAT and SAY.And OEM business. At the same time business SKF, NSK, KOYO, NACHI, TIMKEN, FAG and other different brands of bearing products. We can provide customers with better quality, lower price and faster delivery time. To provide customers with different product quality requirements, to meet customer needs.

The company's main products are: deep groove ball bearings, tapered roller bearings, aligning roller bearings, automotive hub bearings, clutch bearings, aligning ball bearings and other types of products. And the customization of non-standard products. The company provides the high quality product and the high quality service for the global consumer, altogether creates resplendence with you.

Exhibition

Packaging & Shipping

Our Certificates

1. who are we?

We are based in Shandong, China, start from 2020,sell to South America(20.00%),North America(20.00%),South Asia(10.00%),Southern Europe(10.00%),Northern Europe(10.00%),Western Europe(10.00%),Africa(10.00%),Eastern Europe(10.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment.

3.what can you buy from us?

Bearing,Auto bearing,Deep groove ball bearing,Tapered roller bearing,Aligning roller bearing.

4. why should you buy from us not from other suppliers?

20 years of professional production level，High quality bearing products，12 years experience in export trade，Professional service and low prices.

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；

Accepted Payment Currency:USD,EUR,JPY,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash.
